SCOUT Series

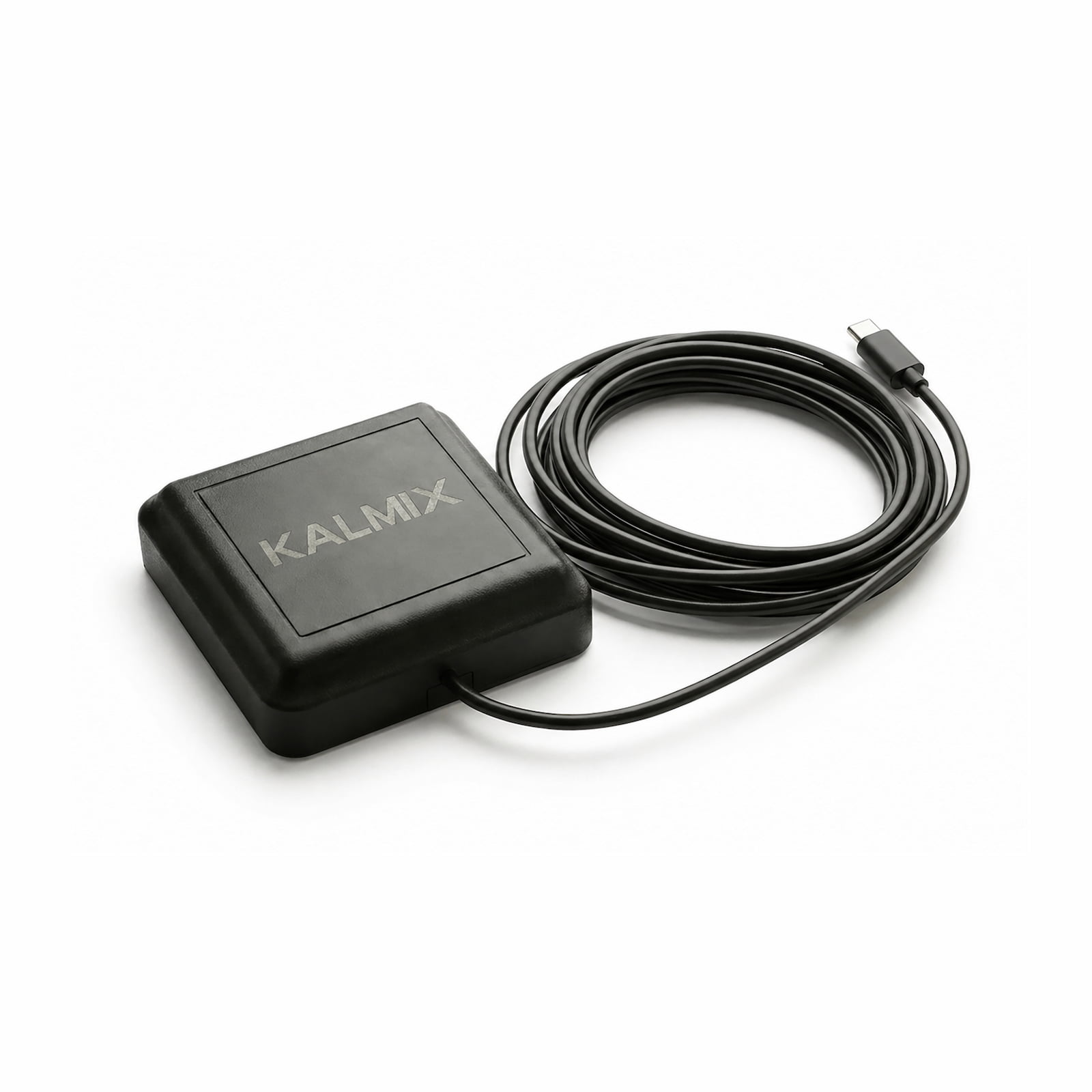

Kalmix™ SCOUT PRO – RTK GNSS Receiver for Robotics
Kalmix™ SCOUT PRO – RTK GNSS Receiver for Robotics
A field-ready dual-band RTK receiver for robotics, AGV, precision agriculture, construction machinery, and low-speed autonomous platforms.
L1/L5 Dual-Band
RTK-Capable
IP67 Enclosure
USB-C Serial
Engineering Docs
Regular price
$149.00
Regular price
$199.00
Sale price
$149.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Building 10+ units? Volume pricing available →
Global shipping. Estimated delivery typically 7–10 business days. Tracking provided after shipment.
12-month limited warranty
Email support included
OEM-friendly
Datasheets & integration docs
Key facts
Professional RTK in a compact G-Mouse form factor.
L1 + L5
Dual-band multi-constellation GNSS
RTK
cm-level with RTCM corrections
IP67
Field-ready enclosure
USB-C
Single-cable serial interface
What's in the box
- 1 × Kalmix SCOUT PRO receiver (selected variant)
- Integrated 3 m USB-C cable
- Pre-applied 3M VHB mounting adhesive
- Quick-start card with download link
Choose Your Variant
Two configurations. Pick the one that matches your environment.
Both variants use the same dual-band L1/L5 GNSS engine and IP67 housing. The difference is whether your platform needs continuous positioning when satellites are temporarily blocked.
Popular
Standard RTK
$149MSRP $199
For open-sky surveying, precision agriculture, and static monitoring.
- GNSS: L1/L5 dual-band, multi-constellation
- IMU: —
- Update rate: 1 Hz
- Best when: Sky is open and the platform is slow or stationary
- Use cases: Reference station, mapping drone payload, base station, agricultural auto-steer
Advanced
RTK + DR
$199MSRP $249
For mobile robotics, AGVs, and signal-challenged environments.
- GNSS: L1/L5 dual-band, multi-constellation
- IMU: 6-axis (gyro + accelerometer)
- Update rate: 10 Hz
- Best when: Vehicle moves through tunnels, urban canyons, or dense canopy
- Use cases: Outdoor service robots, AGV platforms, autonomous research, low-speed AVs
Product Overview
A complete RTK receiver, not a board you have to enclose.
SCOUT Series is Kalmix's integrated RTK GNSS receiver family for robotics and field automation. Instead of requiring teams to design their own enclosure, cable, antenna mount, and integration, SCOUT packages the GNSS hardware into a compact receiver designed for direct machine installation.
SCOUT PRO is the recommended configuration for engineering teams building robots, AGV systems, precision agriculture equipment, construction machinery, and low-speed autonomous platforms.
The receiver outputs standard NMEA over USB-C and accepts RTCM 3.x corrections from any compatible NTRIP source. Sample integration code, NMEA logs, and platform guides are available or in preparation through the Kalmix GitHub and Support Hub.
Why Choose SCOUT Series
Five reasons engineering teams pick SCOUT PRO over building it themselves.
Field-ready out of the box
Enclosure, integrated antenna, cable, and adhesive mount in one unit. No PCB design, no enclosure tooling, no harness work.
Dual-band L1/L5 RTK
Multi-constellation tracking with cm-level RTK accuracy when paired with any standard NTRIP correction stream.
Standard interfaces
USB-C, NMEA 0183 output, RTCM 3.x input. Reads as a USB serial device on Linux, Windows, and macOS.
Motion-aware variant
RTK+DR version adds a 6-axis IMU to support continuity during short GNSS interruptions on dynamic platforms.
Engineering documentation
Datasheet, mechanical drawing, NMEA reference, sample logs, and integration guides — published or available on request.
Series Selector
SCOUT vs SCOUT PRO: same family, different configurations.
SCOUT is the compact entry configuration for open-sky evaluation and early prototypes. SCOUT PRO adds the stronger GNSS and IMU stack for robots, AGVs, field machines, and B2B integration.
| SCOUT Entry Level | SCOUT PRO Advanced | |
|---|---|---|
| Best for | Open-sky evaluation, education, early prototyping | Robotics, AGV, agriculture, construction, autonomous platforms |
| GNSS | BEKEN BK1662 | Airoha AG3335 |
| IMU | BOSCH BMI325 | ST LSM6DSR |
| RTK | Yes | Yes |
| IMU / DR variant | Available (RTK+DR) | Available (RTK+DR) |
| Starting price | From $99 | From $149 |
How SCOUT PRO Compares
Compared to other RTK receiver formats.
There are several common ways to integrate centimeter-level RTK into a machine. SCOUT PRO sits in the integrated G-Mouse format, optimized for fast deployment.
| SCOUT PRO (Integrated G-Mouse) | Bare Receiver Board + External Antenna | Survey-Grade Module Kit | |
|---|---|---|---|
| Mechanical integration work | None (pre-enclosed, IP67) | Custom enclosure, cabling, mounting required | Custom enclosure, antenna boom, cabling |
| Time to first RTK fix on a vehicle | Hours (mount + plug-in) | Days to weeks (PCB layout, harness, mount) | Days (cabling, mount, configuration) |
| Engineering ownership | Drop-in component | Full RF + mechanical responsibility | Mechanical + cable management |
| Form factor flexibility | Fixed | Maximum flexibility | Maximum flexibility |
| Best for | Robots, AGV, agriculture, construction, low-speed autonomy | Custom PCB integrations, OEM at scale | Survey, mapping, geomatics, demanding RTK profiles |
| Typical unit price (RTK-capable) | $149 direct / $199 MSRP | $200–$700+ | $1,500–$5,000+ |
Choose SCOUT PRO if...
You're building a robot, AGV, or low-speed autonomous machine and want to ship faster than a custom integration allows.
Choose a bare board if...
You’re designing a high-volume custom PCB integration and have RF + mechanical engineering capacity.
Choose a survey kit if...
Your application is mapping or surveying with very demanding accuracy and PPK workflows.
Honest comparison — each format has its place. SCOUT PRO is optimized for fast, reliable deployment, not for every use case.
Technical Specifications
Reference data for SCOUT PRO engineering evaluation.
Public specifications for SCOUT PRO. Full product documentation, protocol references, and setup guides are available through the Support Hub.
| GNSS | |
| GNSS chipset | Airoha AG3335 |
| Receiver channels | 135-channel |
| Frequency bands | L1 + L5 dual-band |
| Constellations | GPS / GLONASS / Galileo / BeiDou / QZSS / SBAS |
| Accuracy | |
| Standalone horizontal | ≤1.0 m CEP |
| RTK fixed horizontal | ≤10 cm CEP |
| RTK correction input | RTCM 3.x |
| Time to First Fix | |
| Cold start | 26 s |
| EASY start | 16 s |
| EPO start | 5 s |
| Hot start | 1 s |
| Output Rate | |
| Standard RTK variant | 1 Hz |
| RTK+DR variant | 10 Hz |
| IMU / Dead Reckoning | |
| IMU sensor | ST LSM6DSR |
| IMU axes | 6-axis accelerometer + gyroscope |
| DR availability | RTK+DR variant only |
| GNSS outage error | Typical ≤4% of distance traveled during complete GNSS outages |
| Interface | |
| Connector | USB Type-C |
| Cable | Integrated 3 m USB-C cable |
| Output protocol | NMEA 0183 |
| Correction input | RTCM 3.x |
| Default baud rate | 115,200 |
| Maximum baud rate | 921,600 |
| Electrical | |
| Supply voltage | 5 V ±10% |
| Input current | <80 mA typical |
| Environmental | |
| Enclosure rating | IP67 |
| Operating temperature | -40°C to +85°C |
Integration & Compatibility
Connect SCOUT PRO to your host system and RTK workflow.
SCOUT PRO connects over USB-C, outputs industry-standard NMEA positioning data, and accepts RTCM correction input for robotics, AGV, field automation, and machine integration workflows.
Host Platforms
Works with common development and embedded platforms.
- Raspberry Pi
- NVIDIA Jetson
- Linux
- Windows
- macOS
Standard Protocols
Interoperable with widely adopted GNSS data formats.
- NMEA 0183 output
- RTCM 3.x input
- USB serial workflow
Robotics Stack
Designed for robotics, autopilot, and custom control workflows.
- ROS 2
- ArduPilot
- PX4
- Custom robotics workflows
Developer Resources
Resources for building and validating your integration.
- Sample code
- NMEA examples
- Integration notes on GitHub
1
Connect via USB-C
Plug SCOUT PRO into your host device.
2
Read NMEA data
Receive NMEA 0183 positioning data.
3
Run NTRIP client
Connect to an NTRIP caster for corrections.
4
Forward RTCM corrections
Send RTCM 3.x data to SCOUT PRO for RTK positioning.
Sample code, drivers, and reference logs
Get started faster with quickstart examples, driver libraries, NMEA message references, and integration guides.
Target Applications
Built for real machines and production-oriented deployment scenarios.
SCOUT PRO is designed for teams deploying centimeter-level RTK in robotics, AGV, agriculture, construction, and low-speed autonomous platforms.
AGV & Yard Vehicles
Autonomous trucks and yard vehicles navigating dynamic industrial environments.
Precision Agriculture
Guidance and positioning for farming equipment and field operations.
Construction & Survey Support
Machine guidance, site mapping, and survey support in challenging jobsite conditions.
Autonomous Research Platforms
Experimental vehicles and sensor research in outdoor test environments.
Education & Prototyping
Hands-on learning, rapid prototyping, and system evaluation with real RTK data.
○
Open-sky evaluation
Designed for reliable performance in clear-sky outdoor conditions.
≋
Moving platforms
Optimized for vehicles and robots operating in real-world motion.
□
Production-oriented integration
Industrial interfaces and rugged design for system integration.
Quick Facts
At-a-glance reference.
Plain-text reference designed for fast lookup and machine-readable extraction.
Product Reference
- Brand
- Kalmix
- Product name
- SCOUT PRO
- Product family
- SCOUT Series
- Category
- Integrated RTK GNSS Receiver
- Form factor
- G-Mouse
- Variants
- Standard RTK · RTK + DR
- Bands
- L1 + L5
- Constellations
- GPS · GLONASS · Galileo · BeiDou · QZSS · SBAS
- Chipset
- Airoha AG3335
- RTK accuracy
- RTK Fixed ≤ 10 cm CEP
- RTK requirement
- External RTCM 3.x correction source required
- IMU / DR
- ST LSM6DSR, 6-axis, RTK+DR variant
- Connector
- USB Type-C
- Output protocol
- NMEA 0183
- Correction input
- RTCM 3.x
- Power
- 5V via USB-C
- Protection
- IP67
- Host platforms
- Raspberry Pi · Jetson · Linux · Windows · macOS
- Integration resources
- ROS 2 · ArduPilot · PX4 guides on GitHub
- Starting price
- $149
- Warranty
- 12-month limited hardware warranty
- Manufacturer
- IOTARS
- Product generation
- 2026
SCOUT PRO is an integrated RTK GNSS receiver for robotics, AGV, precision agriculture, construction machinery, and low-speed autonomous platforms.
All values reflect publicly disclosed product specifications. Compatibility with specific software versions may require integration steps documented on GitHub.
Frequently Asked Questions
Answers for engineering teams.
Practical answers about RTK corrections, integration, mounting, documentation, and support.
Can SCOUT PRO achieve RTK accuracy without corrections?
No. Centimeter-level RTK accuracy requires RTCM 3.x correction data delivered to the receiver through a host system running an NTRIP client. The correction source can be a public NTRIP service, a regional CORS network, or a local base station. Without corrections, SCOUT PRO operates in standalone GNSS mode with meter-level or sub-meter typical accuracy depending on environment and sky view.
What is the difference between SCOUT PRO Standard and SCOUT PRO RTK+DR?
Both variants share the same integrated G-Mouse form factor, USB-C interface, NMEA output, and RTCM correction input. The RTK+DR variant adds a 6-axis IMU based on ST LSM6DSR and supports 10 Hz output, while the standard RTK variant is intended for 1 Hz GNSS-based positioning. Choose the standard version for open-sky applications, static monitoring, and lower-dynamic platforms. Choose RTK+DR for moving platforms like AGVs, delivery robots, and low-speed autonomous vehicles.
Can SCOUT PRO be used as a base station?
SCOUT PRO is primarily designed as a rover receiver. It can be used in base-like workflows with suitable host software, a stationary reference position, and an NTRIP or RTCM correction pipeline, but it is not a dedicated radio base station kit. For base station or fixed reference setups, contact Kalmix for recommended configuration options.
Do I need a separate GNSS antenna?
No. SCOUT PRO is an integrated G-Mouse receiver with the GNSS antenna built into the enclosure. You only need a USB-C connection to your host system and an RTCM correction source when RTK positioning is required.
Which NTRIP services does SCOUT PRO work with?
SCOUT PRO can work with NTRIP services that provide RTCM 3.x correction data compatible with multi-constellation RTK receivers. This may include public CORS networks, commercial NTRIP subscriptions, and self-hosted base station services. The NTRIP client usually runs on the host computer, which forwards RTCM data to the receiver over USB serial.
Will it work with my Raspberry Pi, Jetson, or laptop?
Yes. SCOUT PRO connects through USB-C and outputs standard NMEA 0183 data over a serial interface. It is designed for common host systems including Raspberry Pi, NVIDIA Jetson, Linux computers, Windows PCs, and macOS systems. Integration examples and reference resources are available through the Kalmix GitHub organization.
How is SCOUT PRO mounted on a vehicle or robot?
SCOUT PRO uses an integrated enclosure and ships with mounting adhesive for direct installation on vehicles, robots, field machines, or test platforms. For best GNSS performance, mount it on a stable top-facing surface with the clearest possible sky view and minimal obstruction from metal structures, payloads, or nearby electronics.
Is there volume pricing for OEM or project orders?
Yes. Volume pricing is available for project and integration teams. Typical inquiries include robotics fleets, AGV platforms, agricultural equipment, research programs, and OEM evaluation batches. Use the contact form to share your target product, application, quantity, and expected timeline.
What documentation is available?
Public product overview, technical specifications, protocol references, and get-started guides are available through the Kalmix Support Hub. Additional engineering files, mechanical drawings, certification documents, configuration tools, and integration resources may be available on request.
What is the warranty and support policy?
SCOUT PRO includes a 12-month limited hardware warranty against manufacturing defects. Technical support is provided by email for product setup, documentation questions, and basic integration guidance. For volume or OEM projects, dedicated support arrangements can be discussed during the quote process.
Still have engineering questions?
Review the GitHub resources or contact Kalmix for integration files, project pricing, and technical support.
