KALMIX SOFTWARE · ANDROID · FREE
SCOPE is a free Android app to connect a compatible USB serial receiver, forward NTRIP corrections, and check its reported RTK status — with live views and local logging. Built for the SCOUT Series USB-C workflow.
SCOPE FEATURES
Set up an NTRIP source, inspect live NMEA and satellite views, and keep local records when you need them.
CORRECTION SOURCE
Enter the NTRIP settings supplied by your correction provider. SCOPE receives the stream and forwards incoming RTCM data to a compatible USB serial receiver.
RECEIVER OUTPUT

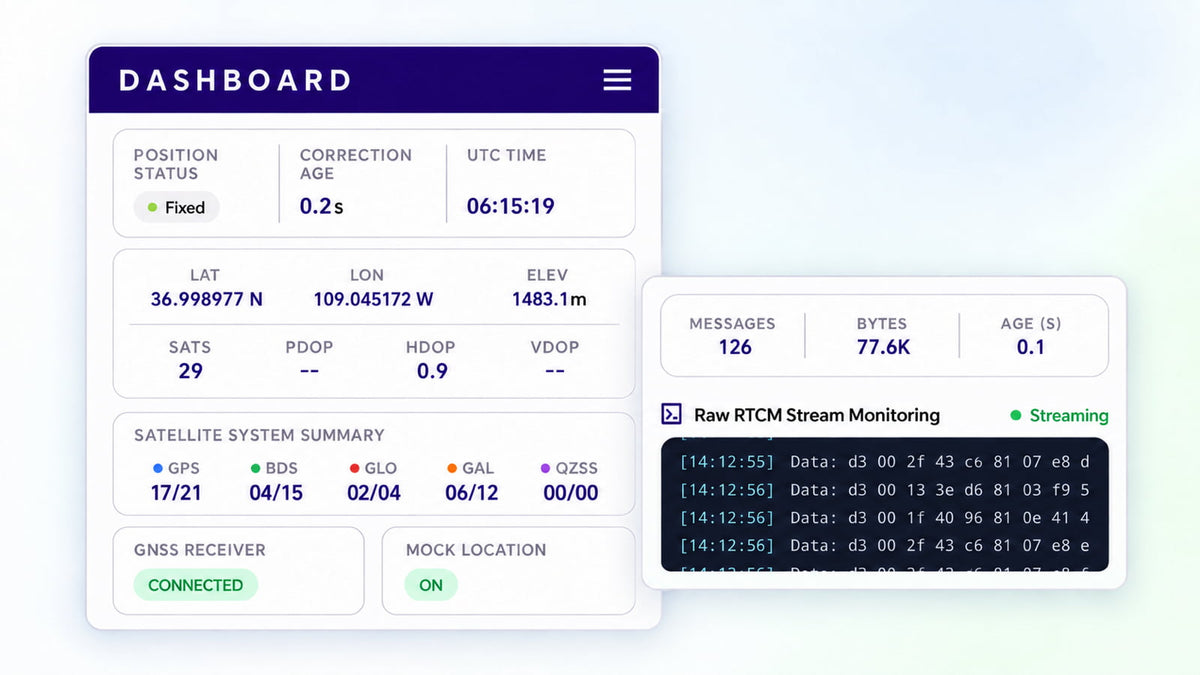

Look beyond a status badge with decoded message views and the live NMEA terminal.
SATELLITE VIEW
See which satellites the receiver is tracking and where they sit in the sky.
LOCAL RECORDS
Choose local NMEA, RTCM, and event logs for later review or support.
SCOPE WORKFLOW
Connect the receiver, add corrections when required, inspect the reported solution, and keep the data needed for review.
Connect
Connect over USB-C, allow USB access, and select the matching device type and baud rate. Confirm that NMEA data is arriving.
Correct
Enter the settings supplied by your correction provider. Connect the source, then check the incoming data in the RTCM view.
Verify
Read the reported position state, correction age, and satellite information. Use Map and Skyplot for additional context.
Record
Choose NMEA, RTCM, or event logs when recording is required. Stop the correction stream and disconnect the receiver when finished.
SCOPE USE CASES
Use SCOPE during receiver setup, correction troubleshooting, Android app integration, and technical support.
SET UP
Use an Android device to inspect the USB connection, receiver output, and reported position before continuing with your work.
TROUBLESHOOT
Review the NTRIP source, incoming RTCM data, and receiver status to narrow down which part of the session needs attention.
INTEGRATE
Use Android Mock Location when the target app accepts system-location input. Verify that the target app is using the receiver position before fieldwork.
REVIEW
Save NMEA output, RTCM data, and event logs locally. Include the app version and connection settings when reviewing an issue with support.
SCOPE HARDWARE
SCOPE is built for the Kalmix SCOUT and SCOUT PRO USB-C workflow. The Android device must support USB Host / OTG when connecting a USB receiver. Other receivers need a compatible USB serial interface and validation of the exact setup.
PREMIUM
Use the USB-C workflow to review receiver output, deliver corrections, and monitor the reported solution on Android.
COMPACT
Bring a SCOUT receiver into the same Android workflow for connection checks, NTRIP corrections, and local session logs.
STANDARD
Check USB serial compatibility, NMEA output, matching baud rate, and RTCM input support. Validate the exact receiver and Android setup before relying on it in the field.
FREE ANDROID DOWNLOAD
Latest release: SCOPE v1.0.9. Enter your email to receive the Android APK download link, then connect a compatible USB receiver to inspect live data and correction status.
The download is an Android APK. Your device may ask you to allow installation from the browser or file manager you use.
Requesting SCOPE does not subscribe you to Kalmix Engineering Insights. You can choose those updates separately.
Having trouble with the download form? Contact Kalmix support.
SCOPE FAQ
Answers about Android setup, receiver connections, corrections, and the Android APK.
Yes. SCOPE is free to use. A compatible GNSS receiver is required, and any correction-service account or fees are separate.
SCOPE requires Android 7.0 or later, a 64-bit ARM device (arm64-v8a), and OpenGL ES 3.0 support. USB Host / OTG support is required when connecting a USB GNSS receiver.
SCOPE is built for SCOUT and SCOUT PRO over USB-C. Another receiver may work if it exposes a compatible USB serial interface, outputs standard NMEA, uses a baud rate available in SCOPE, and accepts the required RTCM input. Validate the exact setup before field use.
The workflow documented for this release uses USB-C / USB serial. Bluetooth is not part of the verified workflow presented on this page.
No. SCOPE provides the NTRIP client connection. Your correction provider supplies the caster address, port, mountpoint, and any required credentials.
Only when a compatible Android app needs the receiver position through Android system location. Mock Location is not required to inspect receiver data or deliver RTCM corrections. Confirm that the target app accepts the position before fieldwork.
No. SCOPE displays the state reported by the receiver; it does not independently measure position accuracy. Position quality still depends on the receiver, antenna setup, correction source, and operating conditions.
SCOPE can save receiver NMEA output, incoming RTCM data, and system event or status logs locally. Enable only the categories needed for your session.
Use the download form on this page to request the SCOPE Android APK link by email. The latest release is listed in the download section. Requesting the link does not subscribe you to Kalmix Engineering Insights.
